Compatible with 2 Wheelers & 3 Wheelers
Input voltage: 230 VAC, 50Hz
Single Phase

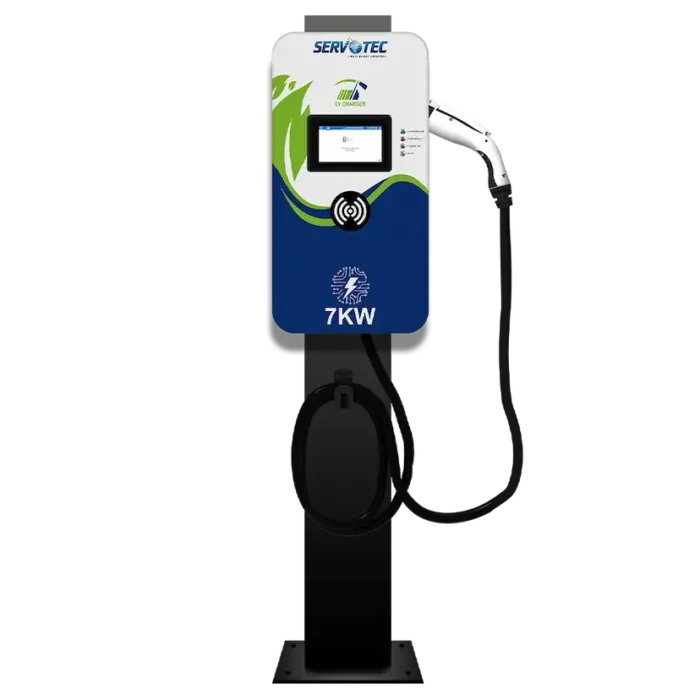

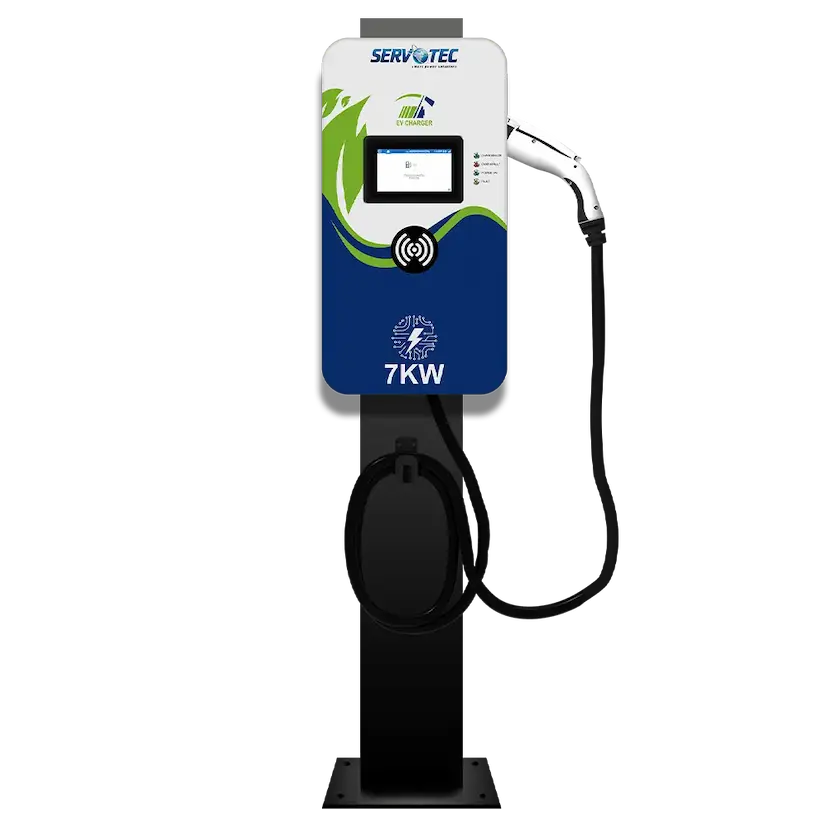

EV Charger 7KW with 2 Year Service Warranty
රු199,500.00
Description
Powerful Performance
• Rating: 7.4KW
• Input Voltage Range: 1-Phase, 230 VAC (±10%), 50Hz
• Maximum Input Current: 16A
Output Port
• One IEC 60309 or domestic output connector with a maximum output current of 32 Amp
User-Friendly Authentication
• Seamlessly authenticate with RFID, QR Code Scan, and OCPP 1.6 based Mobile App Interface for a hassle-free charging experience.
• Offline authentication through mobile application (without internet) is also provided if the customer requires.
Advanced Connectivity
• Interface options include 4G (optional), Ethernet, and Wi-Fi for seamless communication.
Intuitive 4X20 Display System
• Display with adequate resolution and size for visibility in day and night at a distance of 1 meter with naked eyes.
Certification
• Certified by ARAI/NABL
| Sr. No. | Parameter | Detail | Specification |
| 1 | Input Power | Rated Power | 7.4 KW |
| Input Voltage | 230 V +/- 10% | ||
| 2 | Output Power | Number of output | One |
| Output current range | 0-32 A for 7.4KW | ||
| Output charging outlet | Industrial Socket | ||
| Output voltage | 230 V AC | ||
| 3 | Battery Backup | For Billing (optional) | 15 Min |
| 4 | User interface and control function | DISPLAY | 4X20 |
| Status Indicator | LED Light | ||
| Push button | Yes | ||
| User authentication | QR Code + OCPP 1.6 | ||
| External | WiFi + LAN + OCPP1.6 | ||
| 4G (Optional) | |||
| 5 | Communication | Metering and billing | Wifi/GSM with SIM APP server based online Payment, with OCPP based authentication |
| Charging operation | Scan Code/ Application APP based authentication | ||
| 6 | Environment | Ambient temperature | -30 to 55 deg C |
| Storage temperature | -30 to 70 deg C | ||
| Operational Temp | -30 to 60 deg C | ||
| Altitude | < 2000 meters | ||
| Humidity | up to 95% Non Condensing | ||
| 7 | Protection | Input/Output protection | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection |
| Mechanical protection | IP 54 | ||
| Cooling | Natural | ||
| 8 | Regulation | As per | IEC 61851-1:201 |
| Safety | CE | ||
| Certificate | ARAI/NABL | ||
| Optional Accessories Optional | Mounting Column / Piller | ||
| Mounting | Wall / Pole Mounted |
